Foil Drive Assist MAX x Unifoil Integrated Mast
Foil Drive Assist MAX x Unifoil Integrated Mast
Foil Drive Assist MAX x Unifoil Integrated Mast
Foil Drive

Foil Drive Assist MAX x Unifoil Integrated Mast

This collaboration is for the UniFoil rider who wants to embrace their Foil Drive, while preserving the streamline, highly responsive design of the UniFoil masts. Designed for the entire foil line, the UniFoil masts are stiff, strong, and ready for any use and conditions.

Available to order • Contact us for lead time!
Motor Height:
Battery:
Sale priceDhs. 29,710.00 AED
DETAILS + −
The Foil Drive Assist MAX with UniFoil Integrated Mast

While motor positions are fixed and cannot be changed once installed, the UniFoil x Foil Drive Mast Integration is perfect for riders who know exactly where they want their motor, and never want to move it.

NOTE: UniFoil Integrated Masts DO NOT come with the Adaptor, this is an additional add on if you need one.

TECH SPECS + −
  • System Nominal Voltage: 40V
  • Battery Capacity Range: 332-594Wh
  • Max Thrust: 29kg / 63.9lbs
  • Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
  • Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
  • Dimensions with Battery: L525x W125 x H50mm
  • Peak Horsepower: 1854W/2.5hp
  • Sustained Horsepower: 1455W/1.9hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance

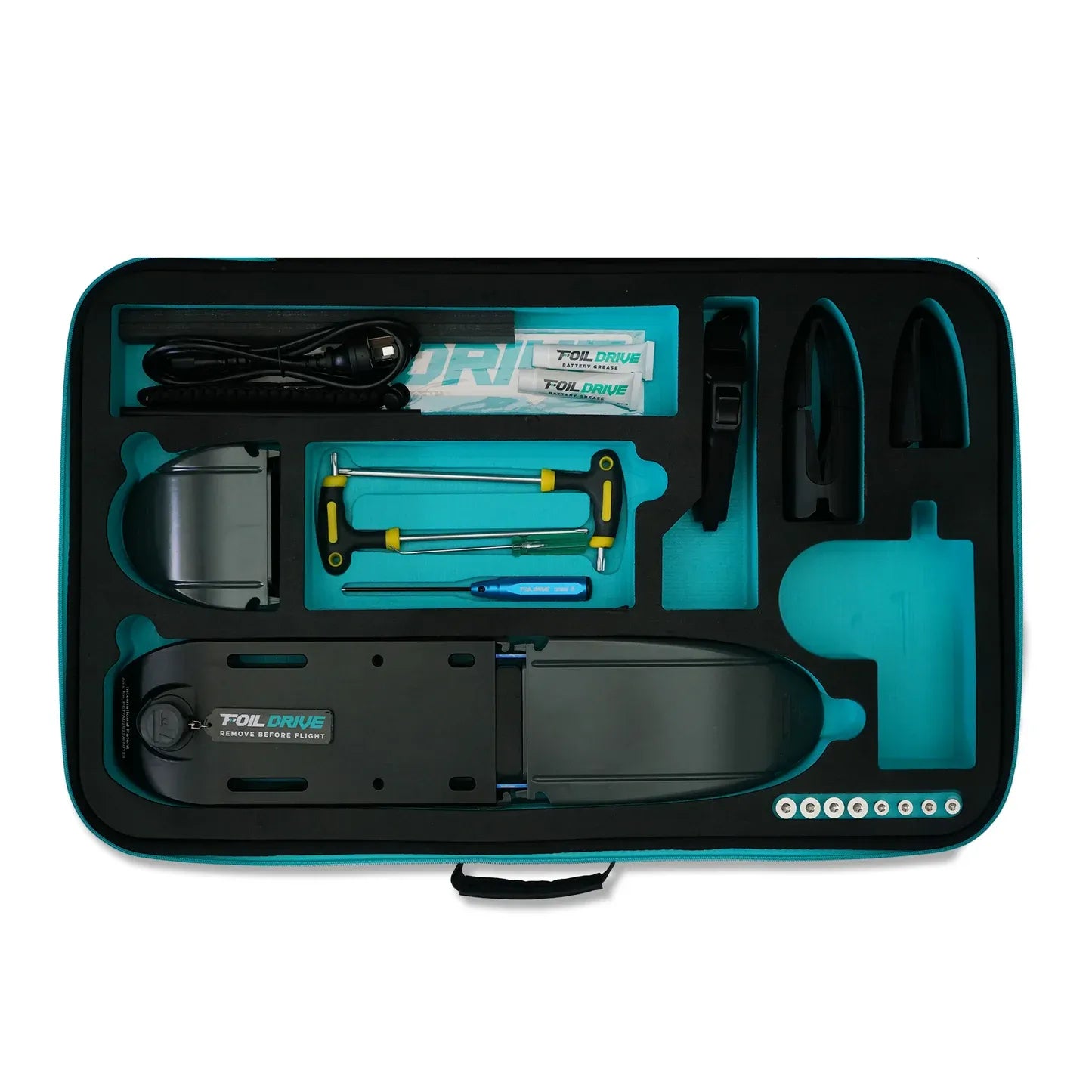

WHAT'S INCLUDED + −
  • Foil Drive Assist MAX
  • Chosen MAX Battery
  • 1x UniFoil Integrated Mast at chosen Motor Height
  • Foil Drive Integrated High Power Motor
  • Two Blade Propellers
  • Optional Doodad and Fuselage Bolts
  • Motor Plug Protector with Keychain
  • Foil Drive Nose Cone A
  • Foil Drive Nose Cone B
  • Foil Drive V3 Controller
  • Foil Drive Controller Wrist Strap
  • Foil Drive Controller Wireless Charge Pad
  • Micro USB Cable
  • 40v Standard Foil Drive Charger 4amp
  • 2x Mast Track Foam Inserts
  • 2x Nose Cone Rocker Pad
  • 2x Battery Grease
  • 4x M8 Assist MAX Mast Plate Bolts 80mm
  • 4x M6 Assist MAX Mast Plate Bolts 80mm
  • Foil Drive 2.5mm Driver
  • Pick Tool
  • Torx T40 Tee Handle Driver
  • Torx T30 Tee Handle Driver
  • Foil Drive Cleaning Cloth
  • Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
  • 4x M8 Locking Tee Nuts
  • 4x M6 Locking Tee Nuts
  • 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
  • 4x Motor Pod Bolts (M3 x 12mm)
  • 3x Puck Bolts (M3 x 12mm)
  • 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
  • 2x O-Ring Seals - Foil Drive Assist MAX
  • 2x Latch Assembly - Foil Drive Assist MAX
  • 3x Motor Plug Bolts (M3 x 12mm)
  • 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
  • 4x Latch Locking Bolts (M3 x 16mm)
  • 2x Propeller Bolts (M3 x 30mm)
  • 2x Latch Pivot Bolts (M3 x 45mm)
COMPATIBLE WITH + −
  • Assist MAX
  • Unifoil Foils
