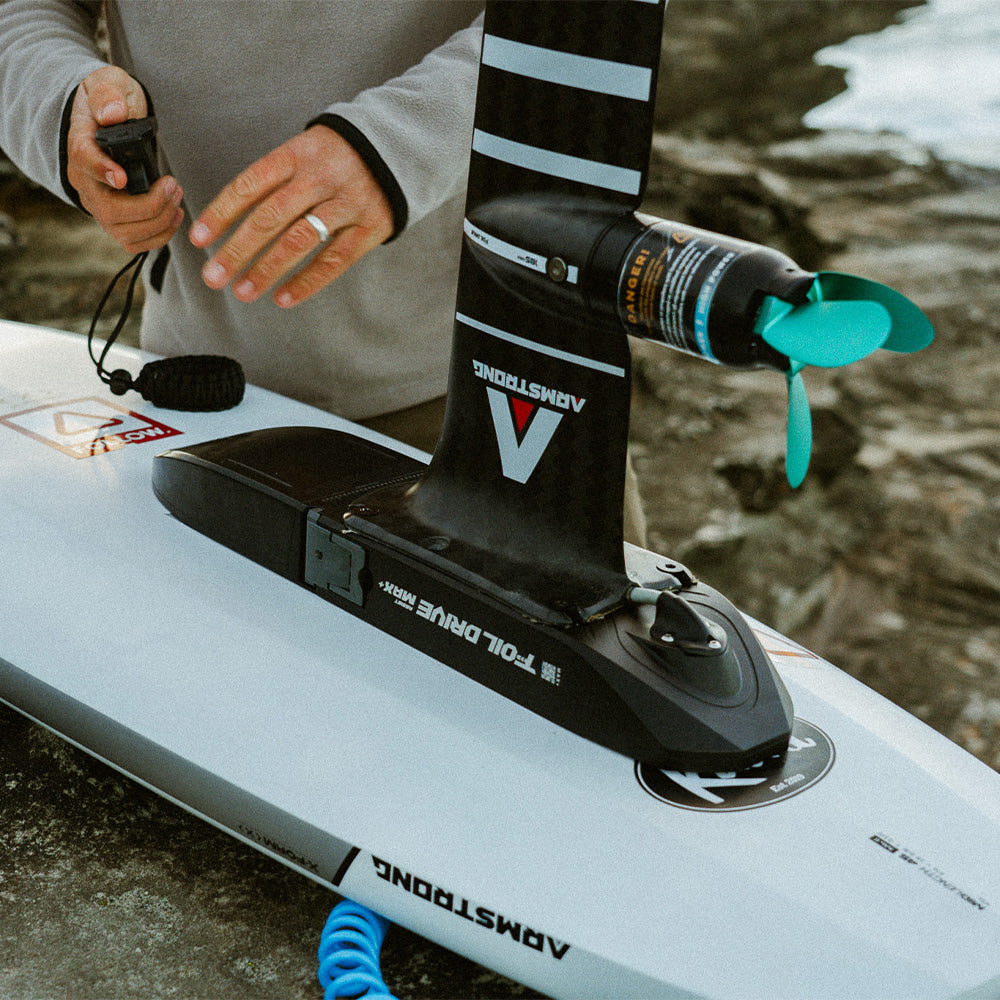

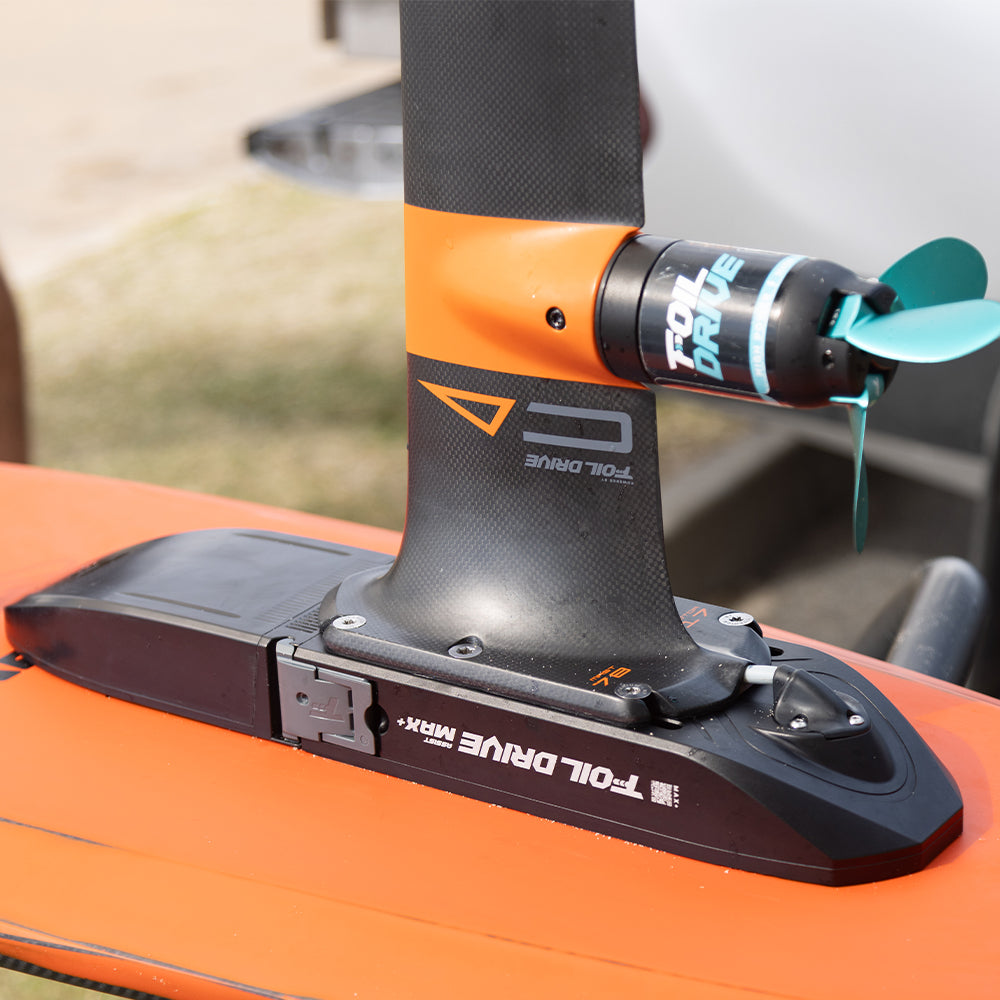

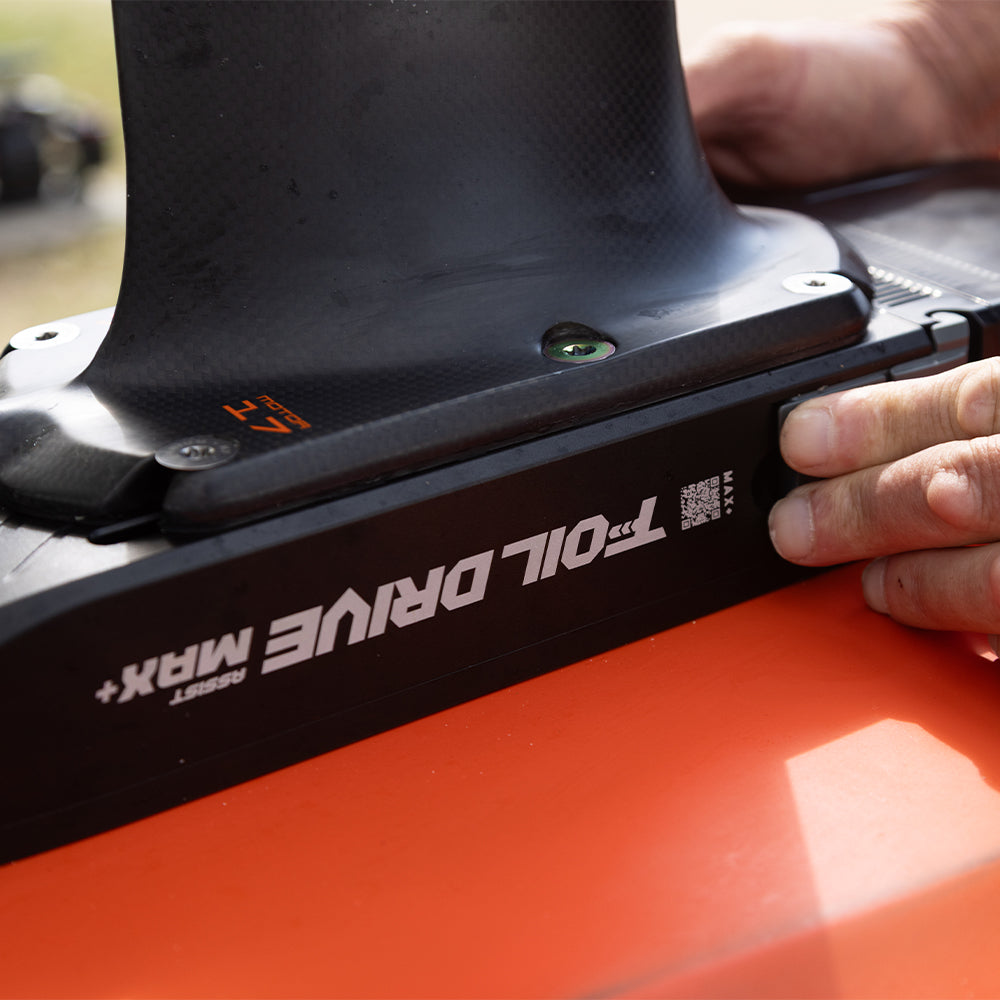

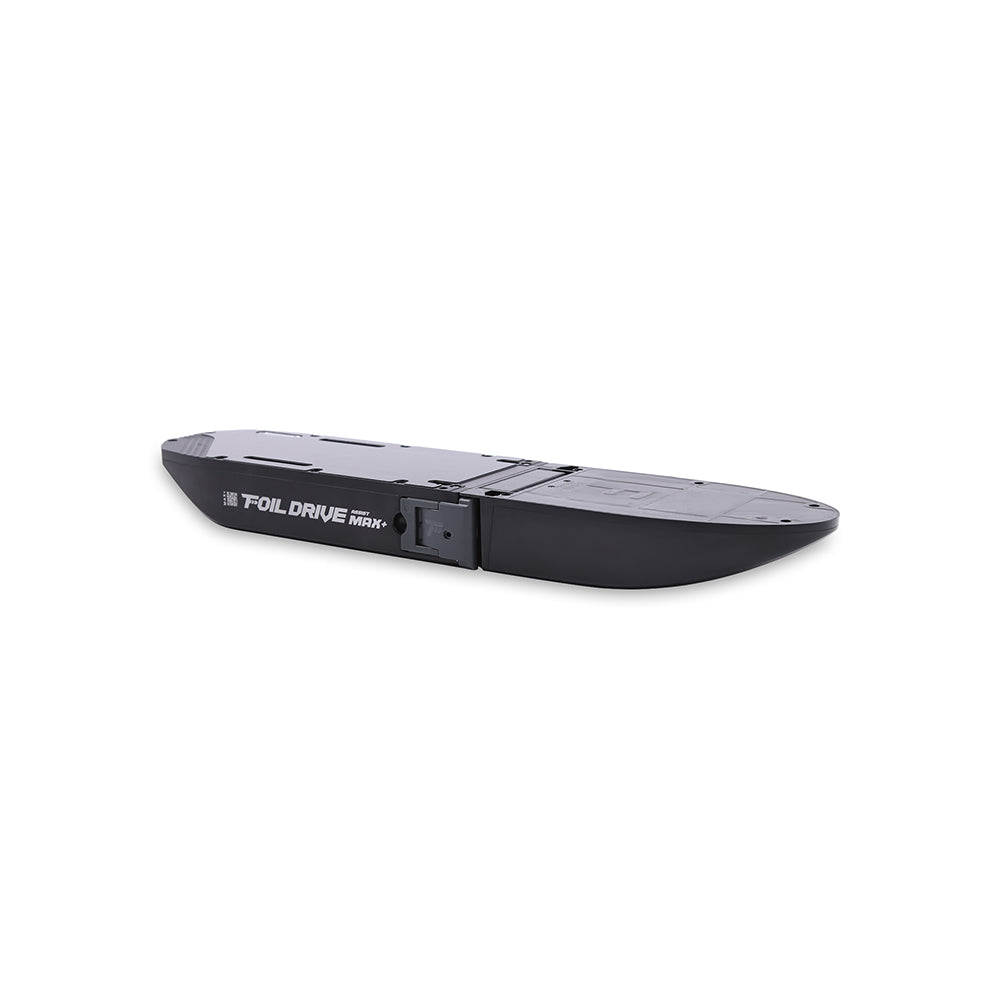

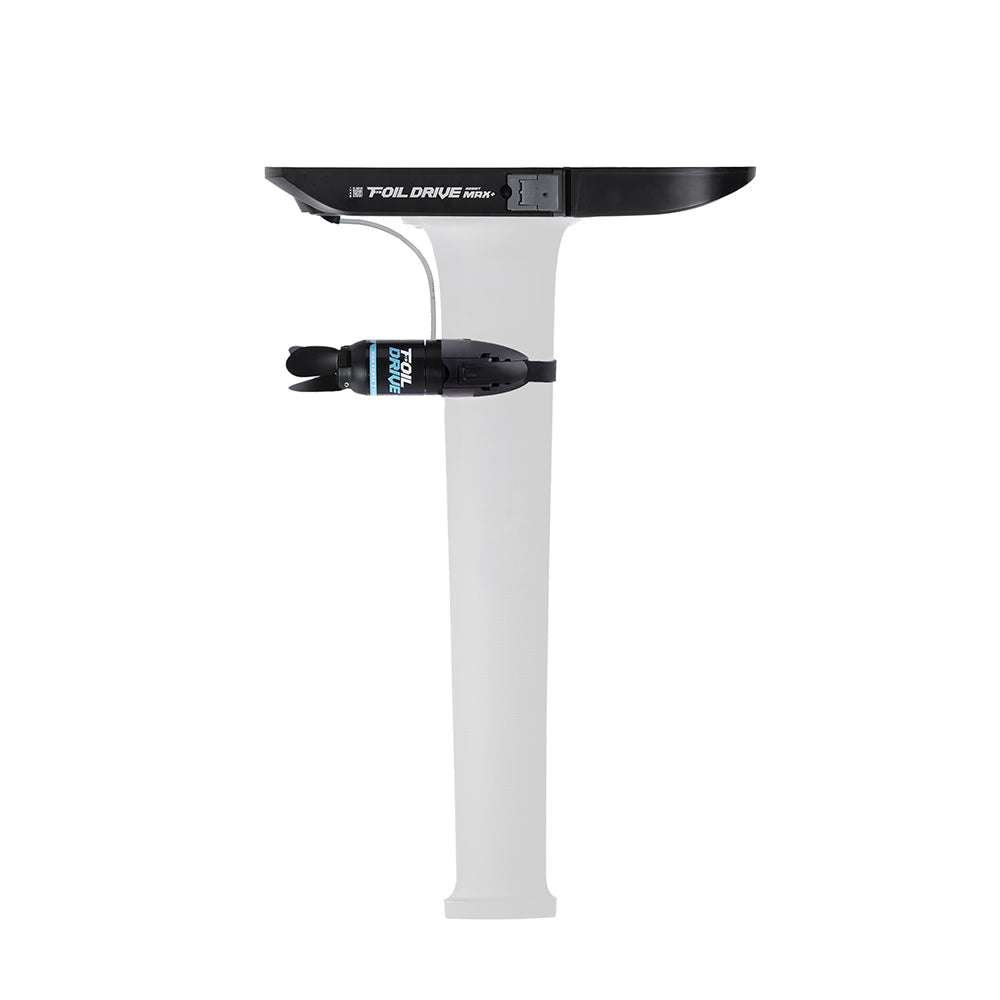

Foil Drive Assist MAX+

The Assist MAX+ takes everything the world loved about our most popular foil assist and evolves it into the latest Gen 2.5 class, turning up thrust, runtime and safety features to unlock autonomy across all foiling disciplines. Built around the same proven 43V power, tech and charging architecture as the Fusion, it offers our most durable one-piece battery design, all while retaining the compact, lightweight and balanced package that made the original MAX so versatile.

Simply choose your desired motor option below.

Available to order • Contact us for lead time!

Battery:

Motor:

Variant

Dhs. 16,160.00 AED

DETAILS + −

The Assist MAX+ is built for riders who want the best all-around system that can open up every side of foiling.

Spend over an hour flying through surf and riding waves.
Motor upwind to unlock downwind runs without a shuttle.
Practice pumping without wasting energy on repeated tow or surf starts.
Chase wakes from passing boats.
Extra thrust to get onto smaller foils and boards with more confidence and runtime.

From tiny bumps to the biggest waves of your life, MAX+ gives you the freedom to keep flying regardless of the conditions. Surf, lightwind wing, downwind, wake, flatwater or eFoiling, it adds more power, runtime and range to practically any existing foil setup you have already or want to ride, making every session easier to access, more productive and more fun.

TECH SPECS + −

System Voltage: 43.2V
Battery Capacity Range: 648Wh
Max Thrust: 35.5kg
Minimum Install Weight*: 6.71kg
Dimensions with Battery: 540 x 125 x 55mm
Peak Power (Boost): 2150W
Sustained Power: 1750W
Peak Horsepower: 2.88hp
Sustained Horsepower: 2.35hp
App Compatibility: Foil Drive App, Android and iOS
Water Rating: IP68 Water and Dust Resistance
Certified: UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (if applicable). Retrofit install with mini pod mounted at 20cm increases install weight by 360g.

WHATS INCLUDED + −

Chosen Battery Option
Chosen Motor Option

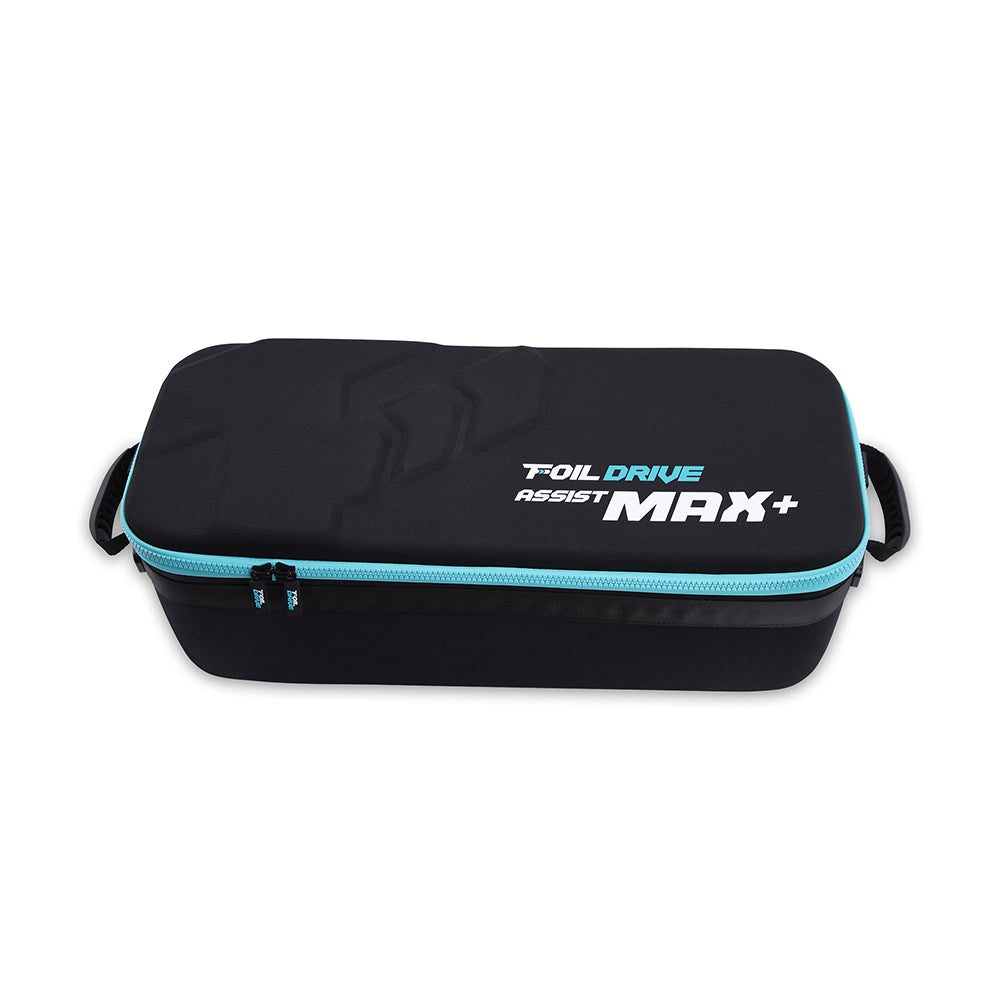

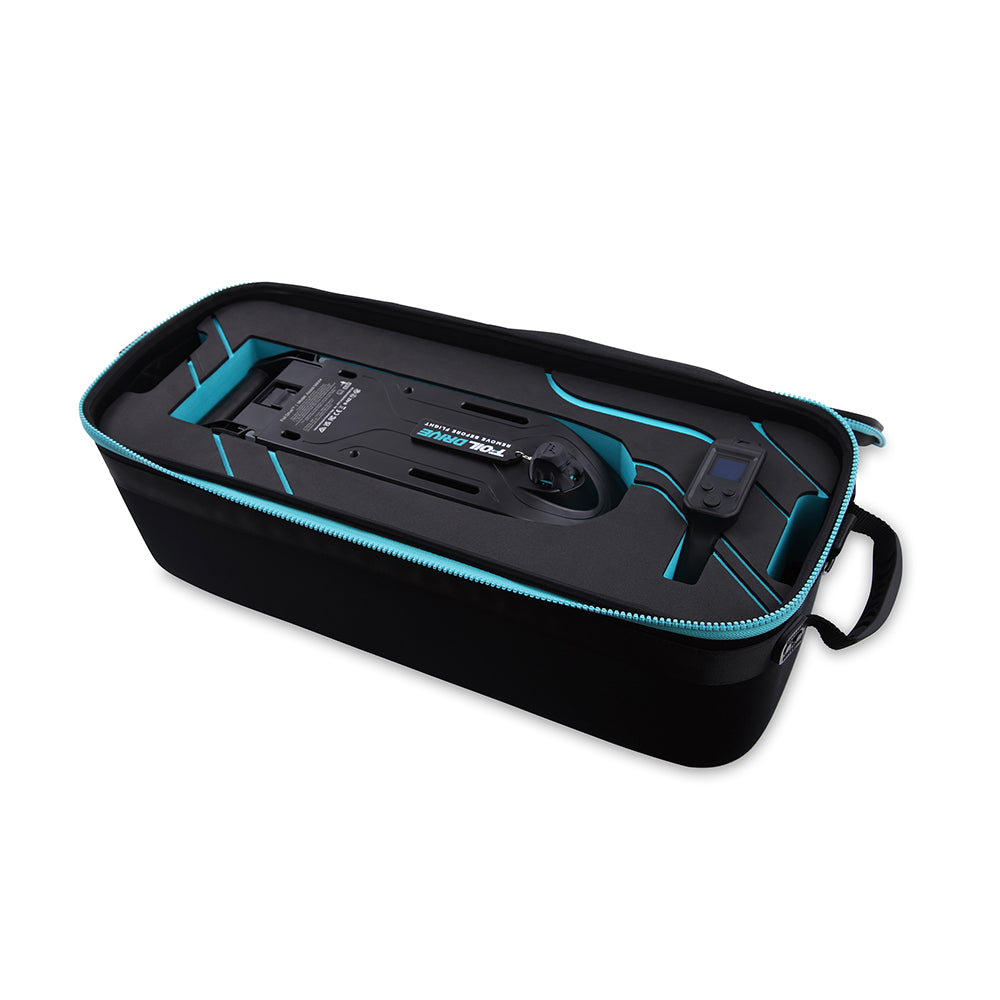

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case

USB-C Charge Pad and Cable
Bump Guard Variation
Wrist Leash
1.5mm Allen Key for Bump Guard Removal

Tools and Hardware

1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other

2x Mast Foam Track Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack
User Manuals

COMPATIBLE WITH + −

Important: Existing Assist MAX batteries are not compatible with this system.

FM+ 650 Battery
FM+ 430 Battery (Coming Soon)
43V Foil Drive Charger

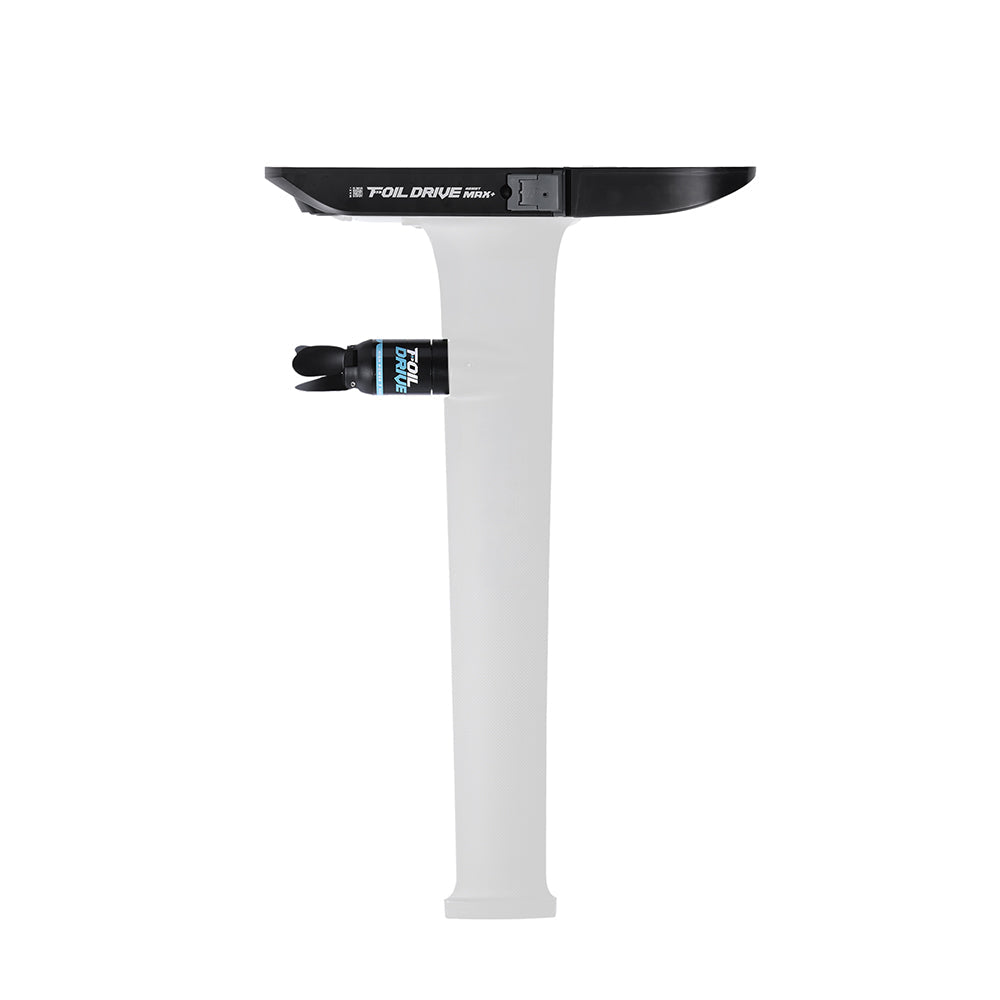

V2 High Power Motor

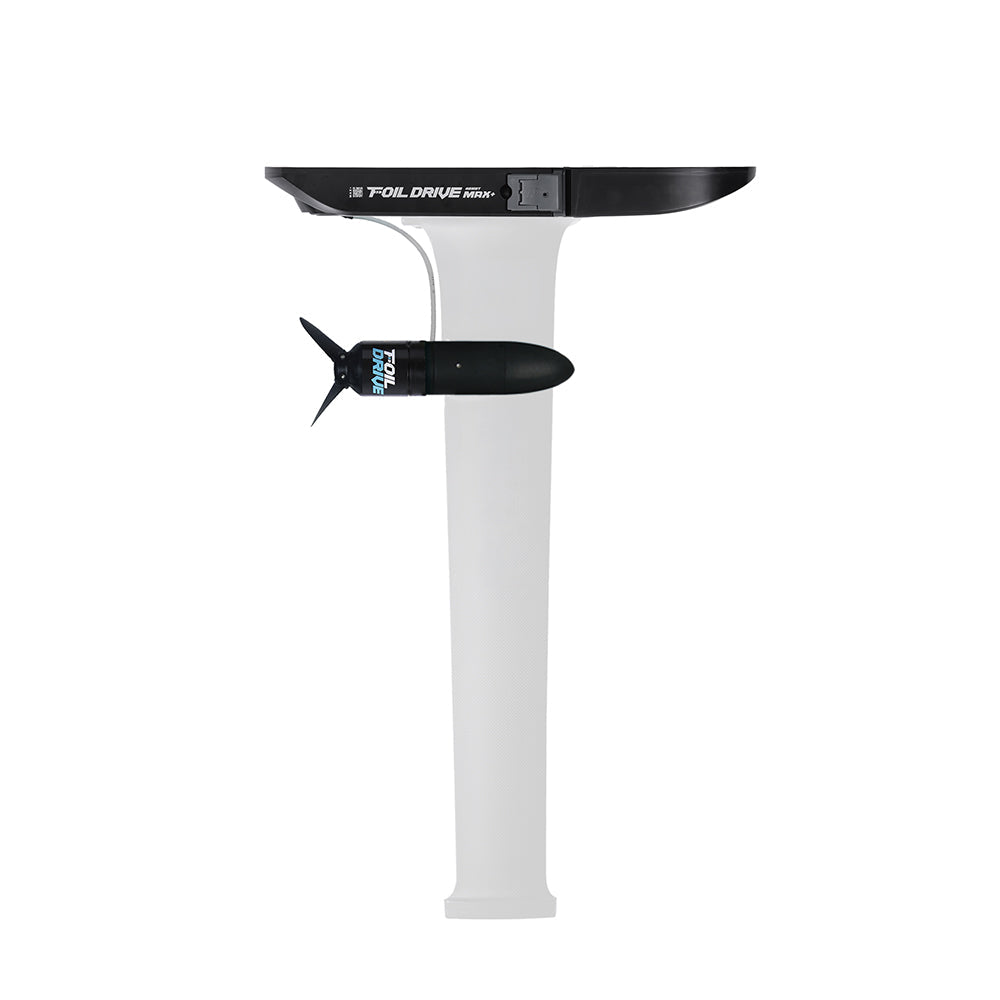

V2 Standard Motor
V2 Controller
V3 Controller

FM+ Batteries are also compatible with Foil Drive Fusion (requires FM+ Battery Adapter).
