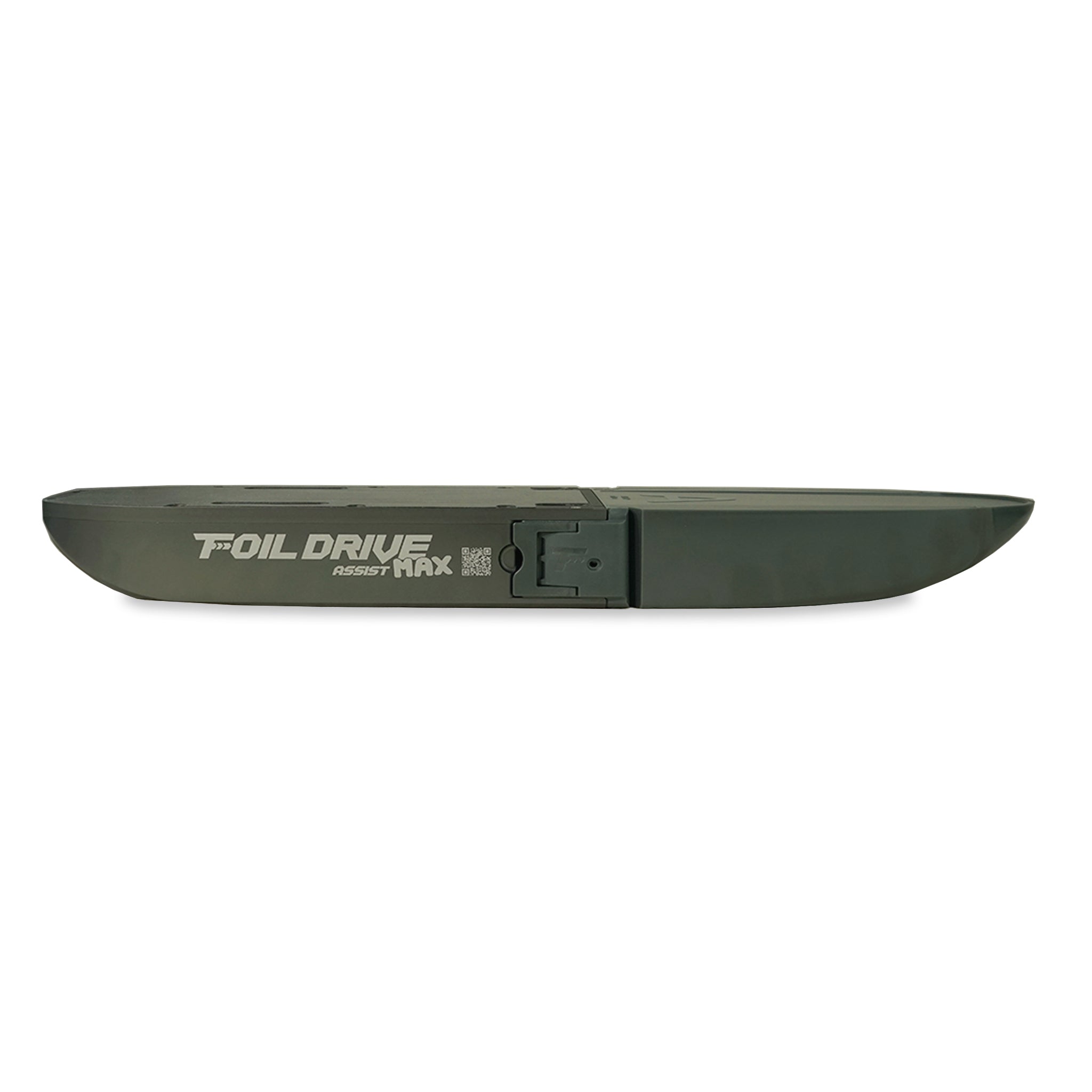

Foil Drive Assist MAX

The Assist MAX is the all-rounder Foil Drive system, engineered for the perfect balance between thrust, runtime, and versatility across all foiling disciplines. Providing an optimized blend of power, endurance, and weight, The Assist MAX unlocks longer surf sessions, reliable flatwater takeoffs, and easy upwind and downwind riding, and unlimited progression regardless of the conditions.

Simply choose your desired battery size and motor below.

Available to order • Contact us for lead time!

Battery:

MAX High Power MAX Sport MAX Travel

Motor:

High Power V2

3 Blade Propeller Upgrade:

No, I'm fine Yes, please add - AED 800

Variant

Dhs. 26,680.00 AED

DETAILS + −

The MAX is best suited for riders under 100 kg using small to midlength boards and their preferred foil setups, offering a single system that performs across surf, wing, downwind, wake, flatwater, and light eFoiling.

The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!

TECH SPECS + −

Maximum Thrust: 27.5kg with Three Blade Alloy Props
Weight Range: 3.4 - 4.5kg depending on battery
Dimensions: L415 x W250 x H50mm
Operating Voltage: 40V
Runtime: 40min-4hrs depending on use case, battery and other variables.
Recharge Time: Appx. 2-3.5hrs (MAX Power Battery)
Batteries: IP68 rated dust and water resistant.

WHATS INCLUDED + −

Foil Drive Assist MAX Base Kit
Your Choice of Battery

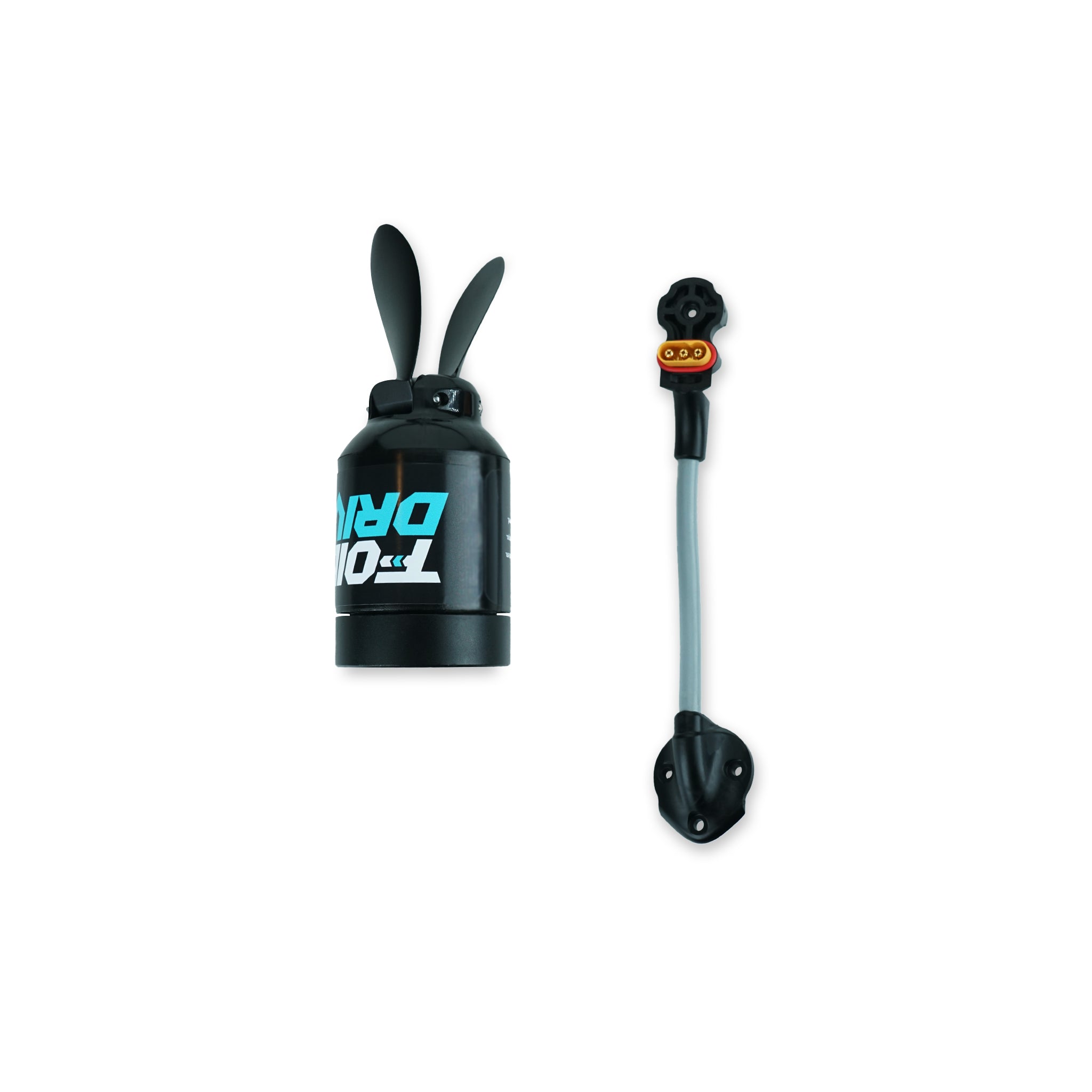

Your Choice of V2 Motor

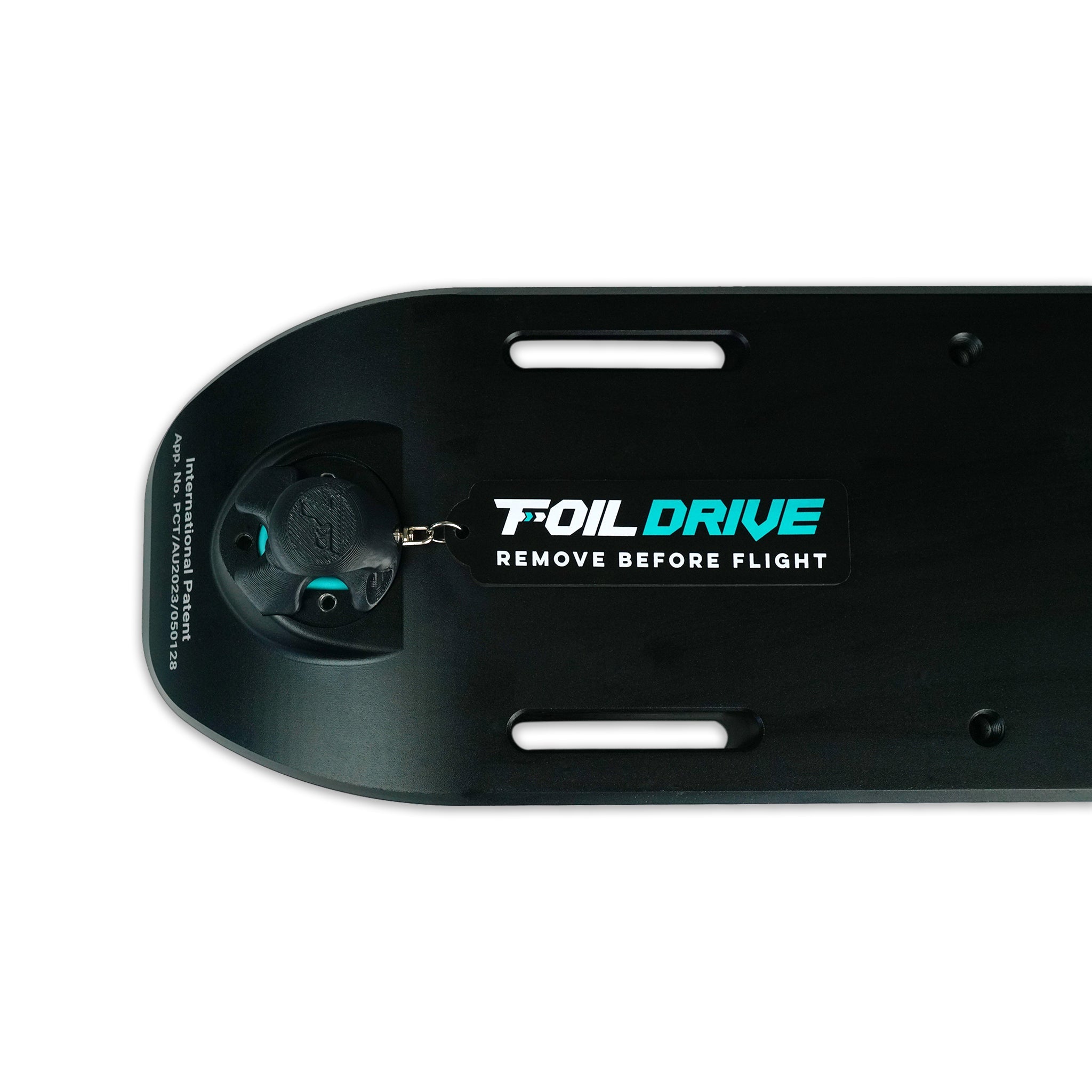

Motor Plug Protector with Keychain
40v Standard Foil Drive Charger 4amp
Nose Cone A
Nose Cone B
Universal Motor Pod - Rear
Universal Motor Pod - Short Nose
Universal Motor Pod - Long Nose
Universal Motor Pod Keys

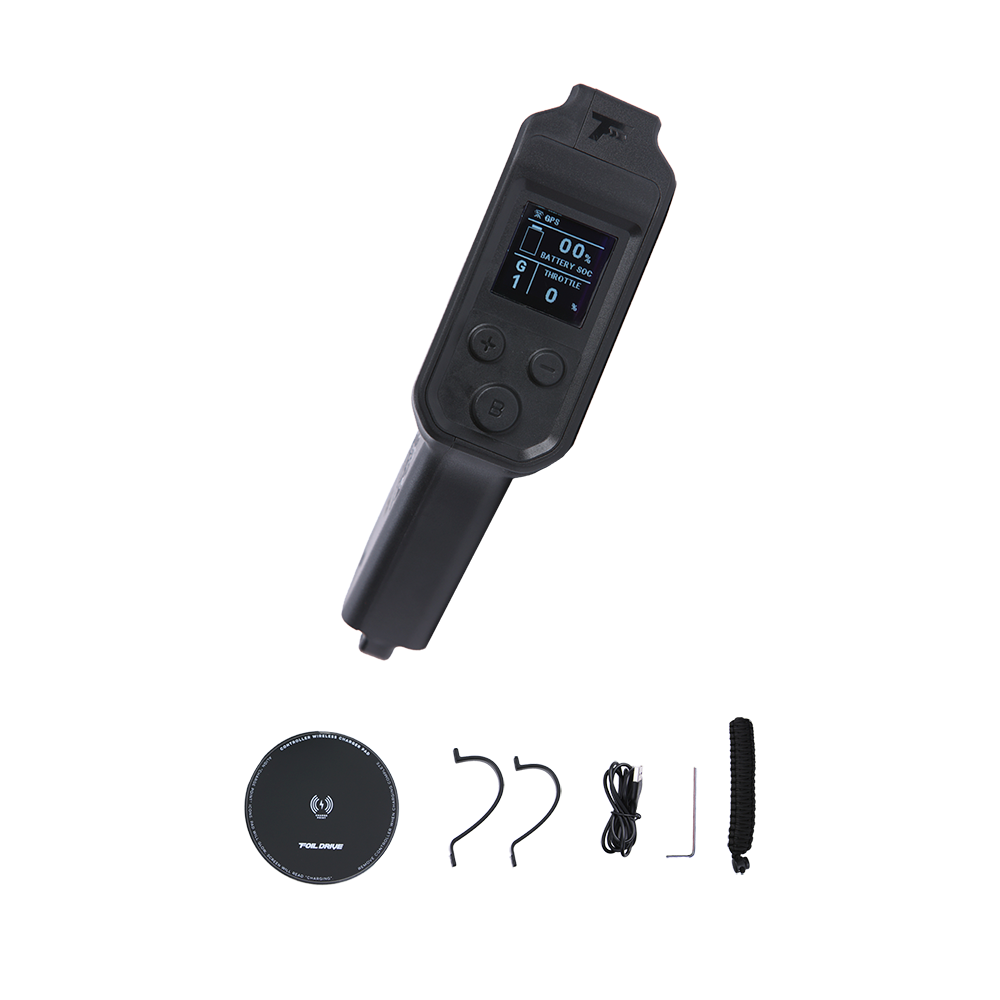

V3 Wireless Throttle Controller
Controller Wireless Charge Pad and Micro USB Cable
Controller Wrist Strap
2x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease

Foil Drive Mounting Bolt Bag

4x M8 Locking Tee Nuts
4x M6 Locking Tee Nuts
4x M3 x 20mm Bolts for Locking Tee Nuts

4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

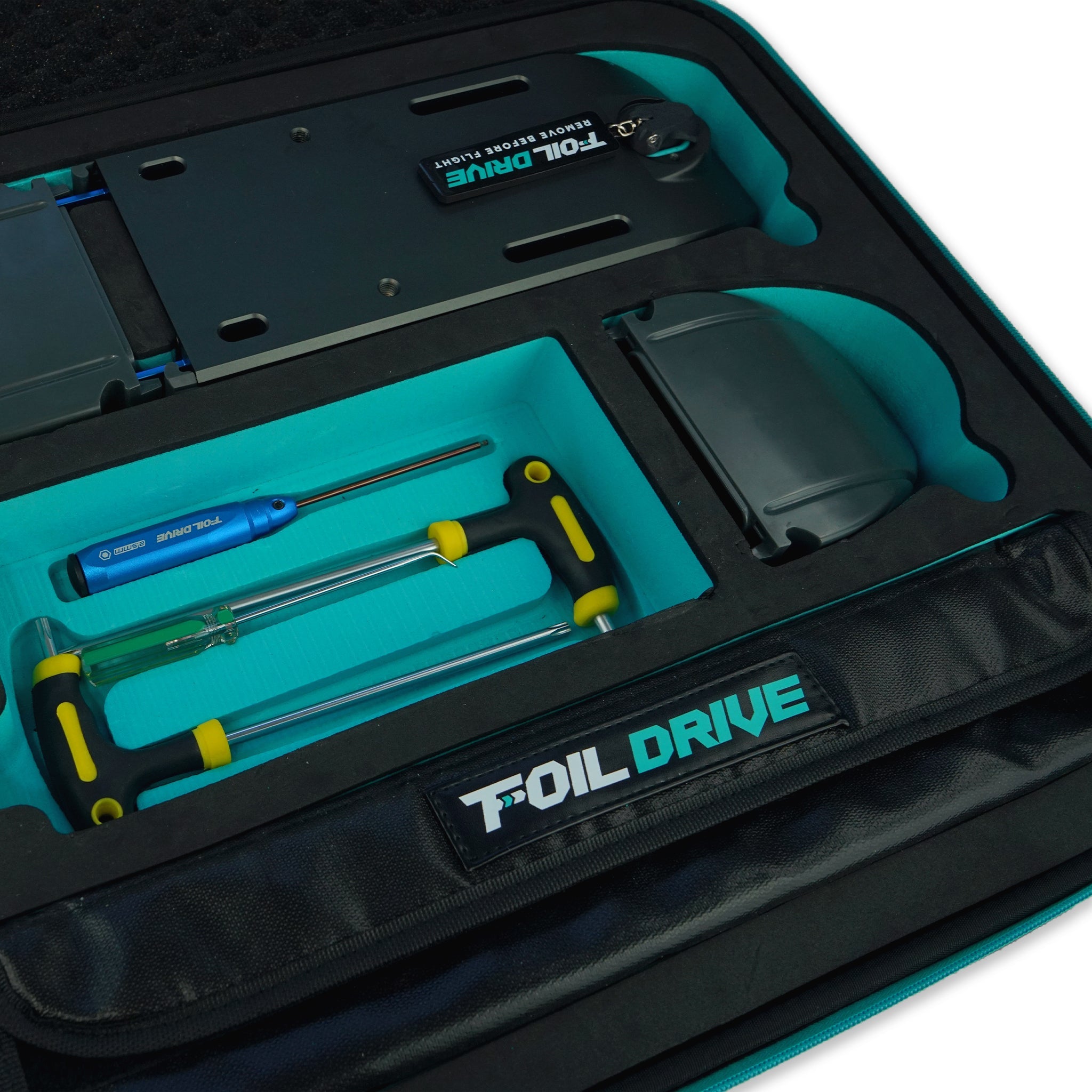

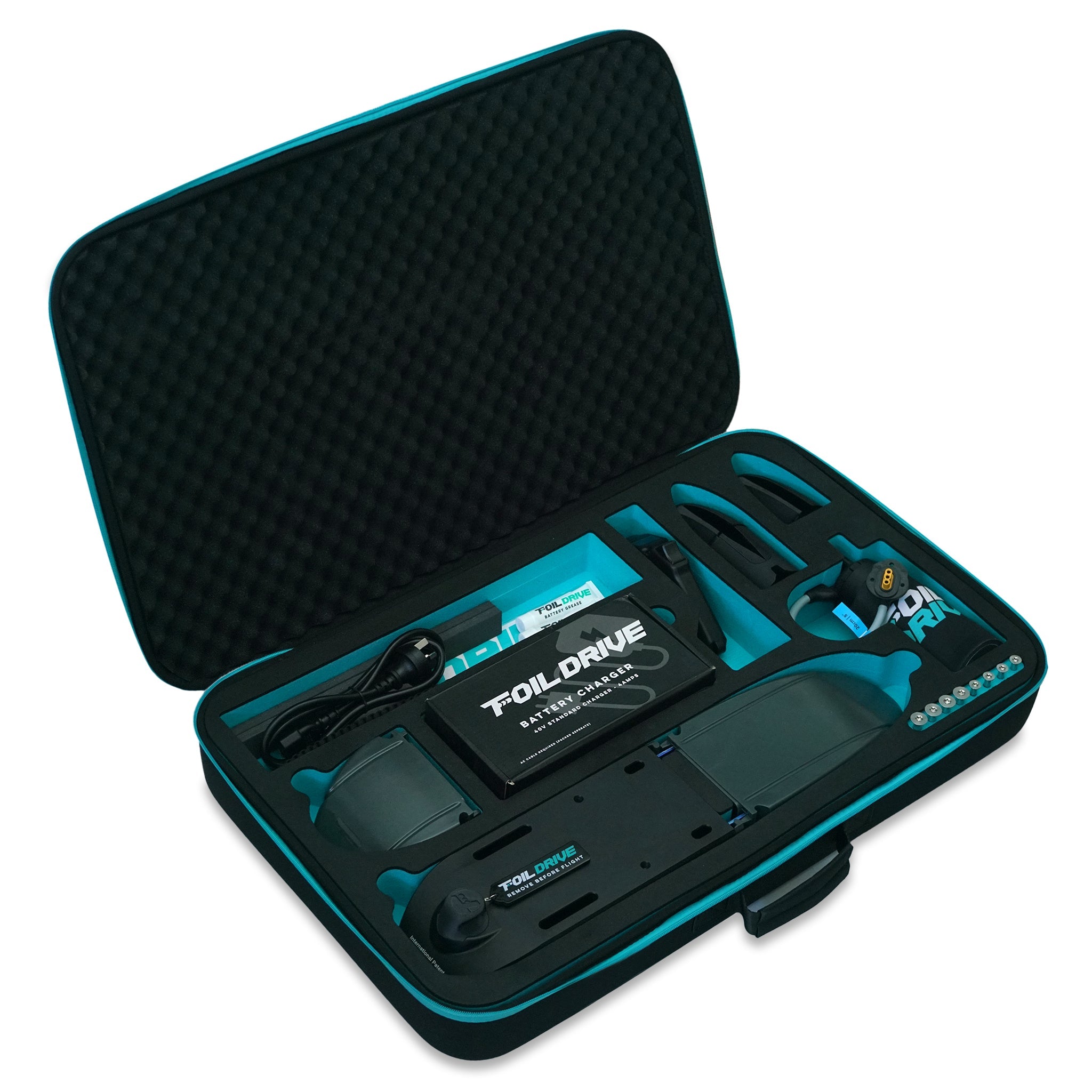

Foil Drive Gen2 Carry Case

Foil Drive Motor and Pod Bolts Bag

4x Motor Pod Bolts (M3 x 12mm)
3x Puck Bolts (M3 x 12mm)
3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag

2x O-Ring Seals - Foil Drive Assist MAX
2x Latch Assembly - Foil Drive Assist MAX
3x Motor Plug Bolts (M4 x 10mm)
7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
4x Latch Locking Bolts (M3 x 16mm)
2x Propeller Bolts (M3 x 30mm)
2x Latch Pivot Bolts (M3 x 45mm)

COMPATIBLE WITH + −

MAX High Power Battery
MAX Power Battery
MAX Sport Battery
MAX Travel Battery
40V Foil Drive Chargers
